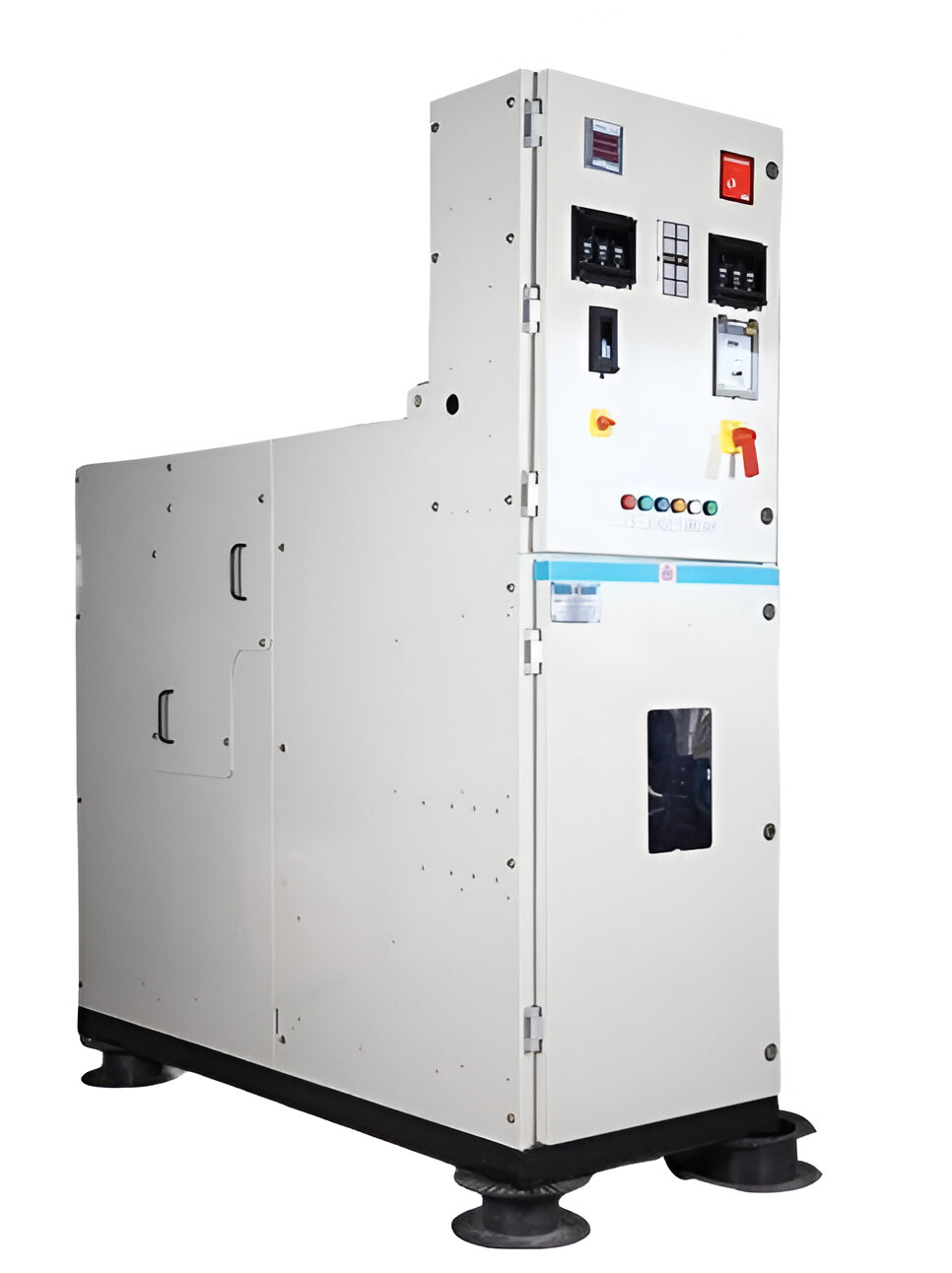

HT ICOG PANEL

  System Voltage: 11KV / 33KV

  Rated Current: 630A – 2500A

  Short-Time Current Rating: Up to 31.5KA for 3Sec

  Rated Short Time Withstand Current: Up to 10KA for 1Sec

  Breaking Capacity: Up to 40KA

  Type of Breaker: Vacuum Circuit Breaker (VCB)

  Type of Panel: Indoor / Outdoor

  Protection: Overcurrent/ Earth Fault

  Transformer Protection: WTI/OTI/Neutral

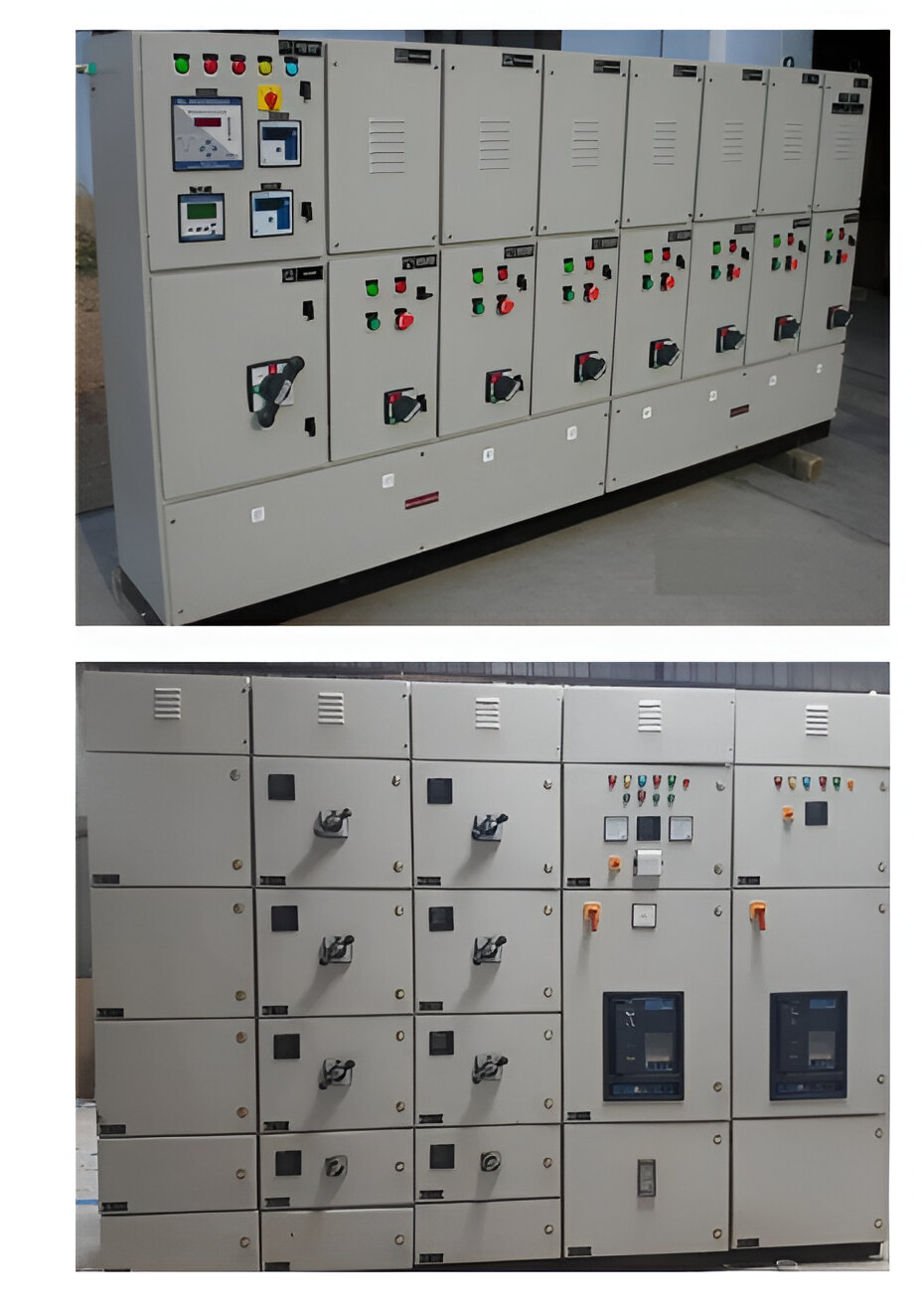

PCC/MCC PANEL

  415V, 3PH, 50HZ, 3 /4 wire System

  100A –6300A Incomer Current Rating

  Dual/Triple or More Incomer Source with Bus Coupler Interlocking

  Surge Protection

  Single Phase/Phase Reversal Protection

  Various Optional System Protection like Under Voltage/ Over Voltage/ Over Current/ Over Load/ Short Circuit/ Instantaneous/ Earth Fault etc.

  Various Optional System Parameter Monitoring including Energy Management Monitoring/ Voltage/ Current/ PF/ Frequency/ Harmonics etc.

  Various Motor Starter like, DOL Starter/ Star-Delta Starter/ Auto-Transformer Starter/ VFD Starter/ Soft Starter etc.

  AL Bus Bar Electrical Grade.

  IP 54 Rating for Dust and Water proof.

  7-Tank Process for Painting.

  Rubber Gasket for every door or opening.

  Gland Plates for Cable entry or exit.

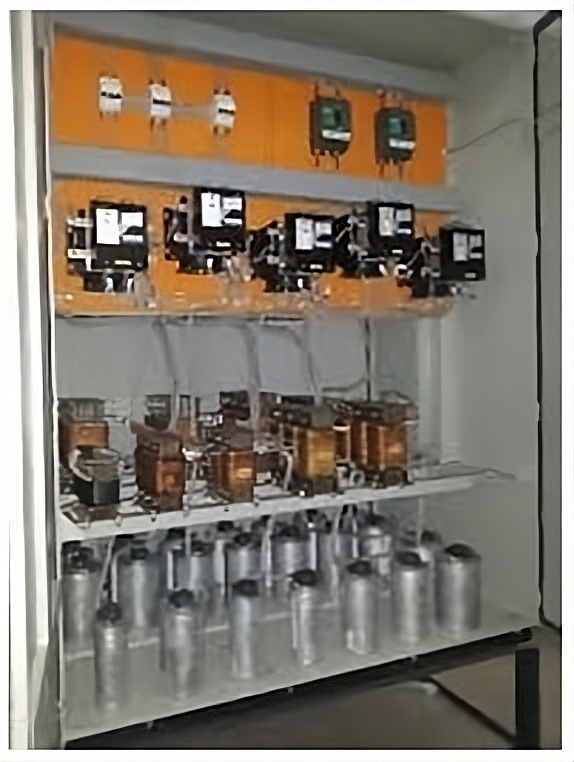

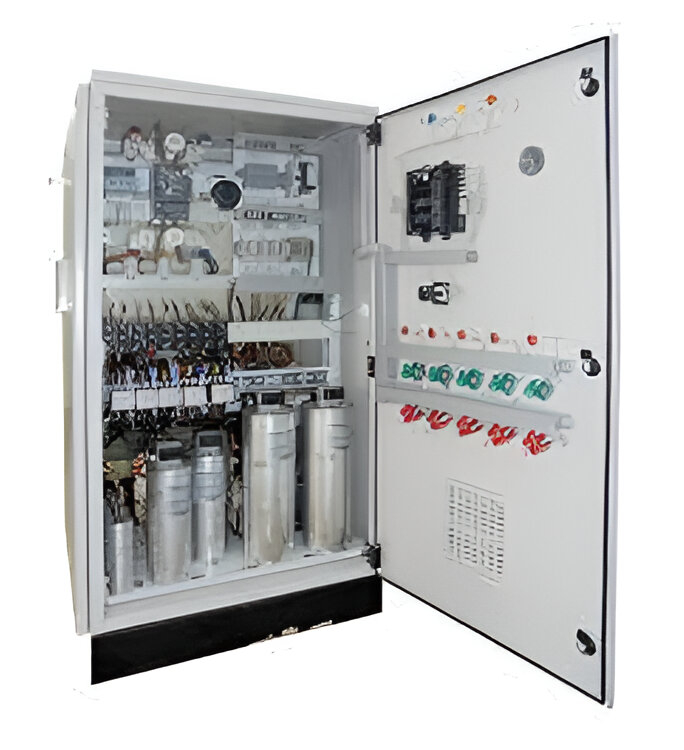

APFC PANEL

  415V, 3PH, 50HZ, 3 wire System

  STANDALONE or Integrated APFC Controller Panel

  Systematic and automatic power factor correction to ensure close to unity power factor to reduce electricity bill.

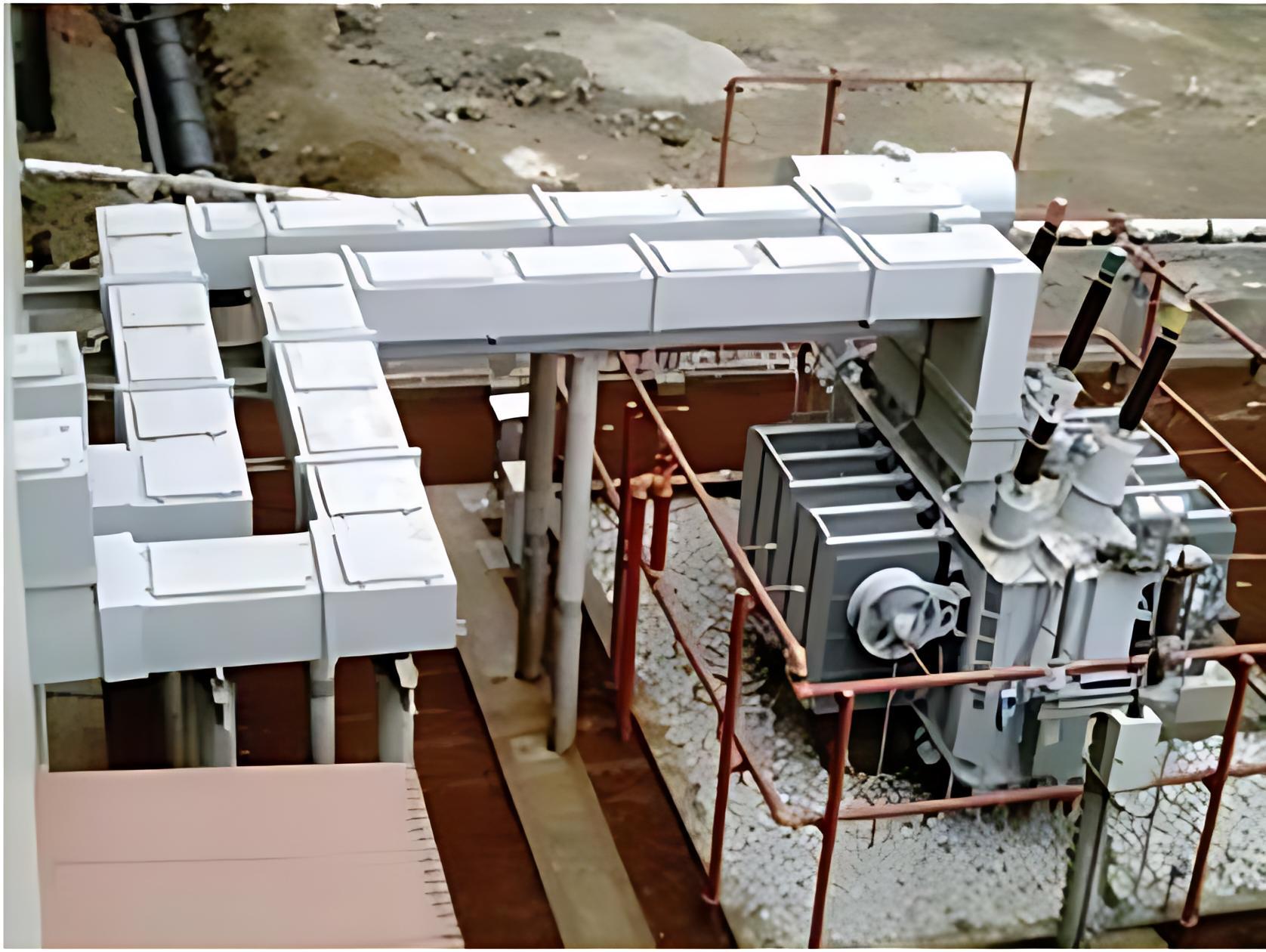

BUS DUCT

  HT or LT

  Non Segregated Phase Bus Bar

  AL or CU Bus Bar

  Metal Enclosure preferably CRCA Sheet Steel or Al.

  Adapter for Transformer End and/or Panel End

  Optional CU Flexible for easy and accurate joint.

  Optional Rubber Below

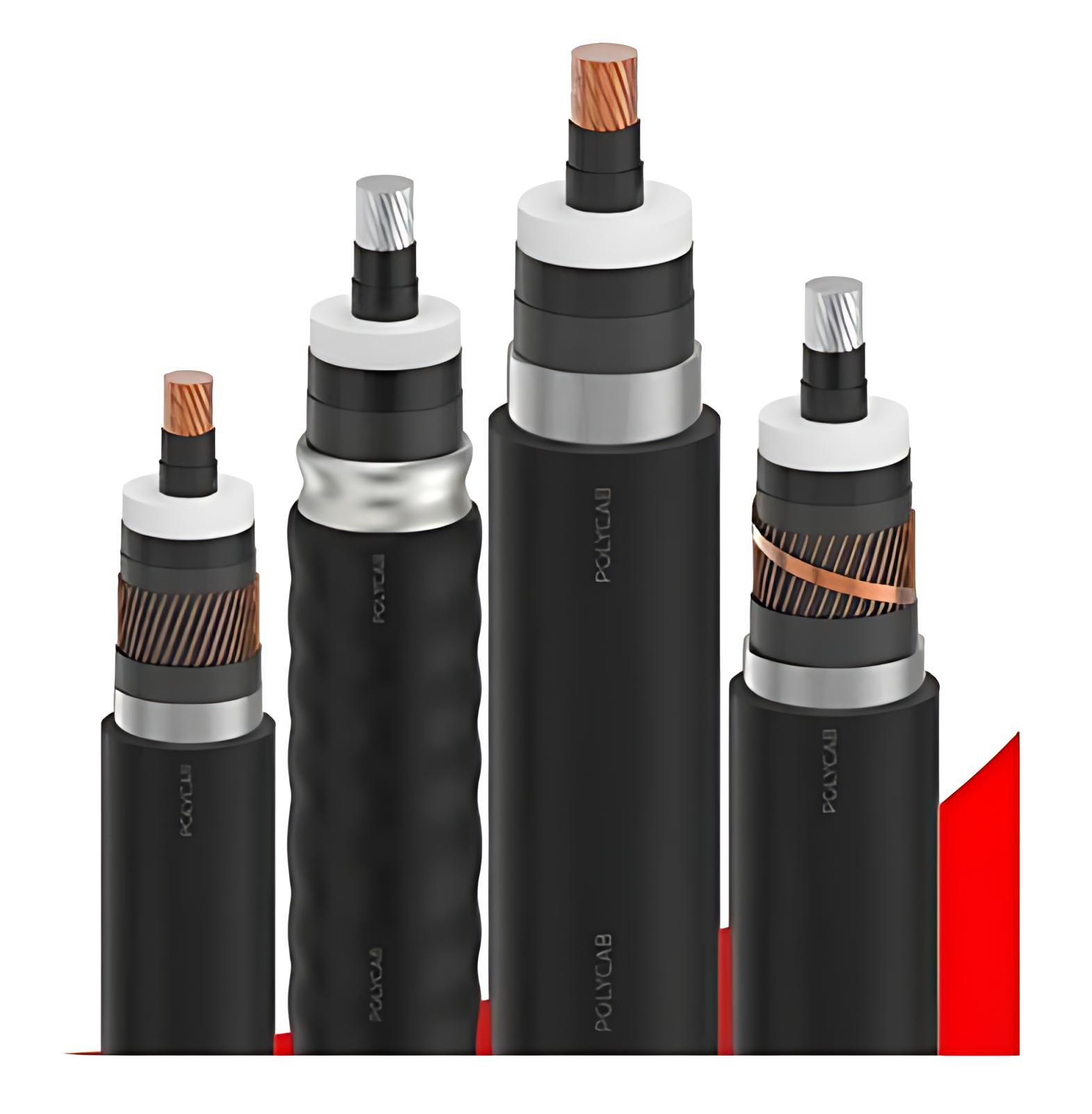

EHV XLPE CABLE

  1CX240 sq.mm to 1CX2500 sq.mm (IEC 60840) (66 kV to 110 kV)

  1CX300 sq.mm to 1CX2500 sq.mm (IEC 60840) (132 kV)

  1CX400 sq.mm to 1CX2500 sq.mm (IEC 62067) (220 kV)

  IEC 60840, IEC 62067, and IS 7098-3 Standards

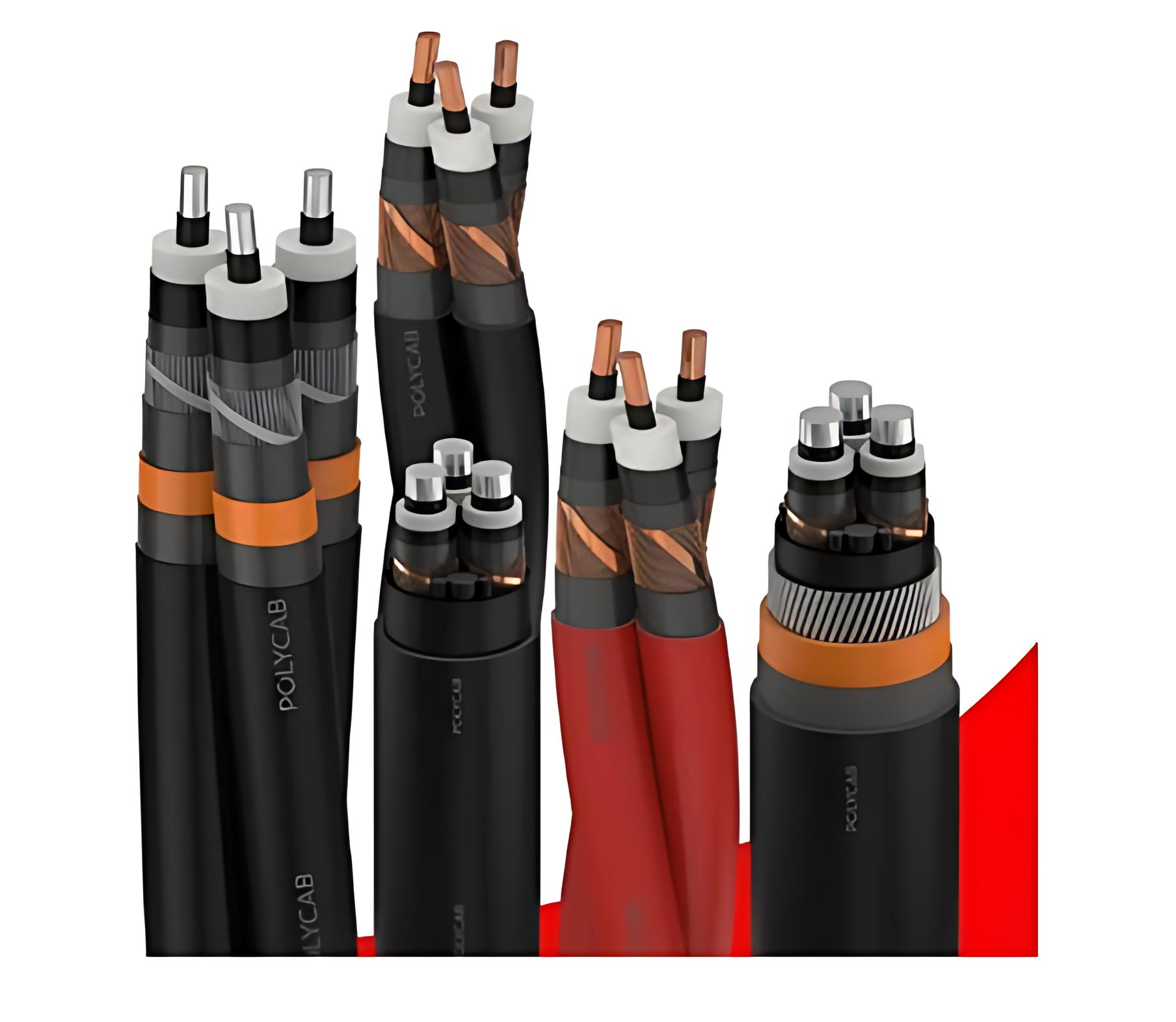

HV XLPE CABLE

  1.9KV TO 33KV

  25 sq.mm to 1000 sq.mm (1.9 kV to 11 kV) – Single Core

  35 sq.mm to 1000 sq.mm (12.7 / 22 kV) – Single Core

  50 sq.mm to 1000 sq.mm (19 / 33 kV) – Single Core

  25 sq.mm to 500 sq.mm (1.9 kV to 11 kV) – Three Core

  35 sq.mm to 500 sq.mm (12.7 / 22 kV) – Three Core

  50 sq.mm to 500 sq.mm (19 / 33 kV) –Three Core

LV CABLE

 Power Cable: 1.5 sq.mm – 1000 sq.mm, Core – 1, 2, 3, 3.5 & 4

 Control Cable: 1.5 sq.mm / 2.5 sq.mm, 2 Core – 61 Core

 Fire Protection Cable: 1.5 – 400 sq.mm, Core 2-37, Pair – 1-20

  Industrial Cable:
     Single Core Cable - 0.5 sq.mm to 630 sq.mm
     Multicore type - 02YY-K & 02YY-R Cable-2Core to 30Core (0.5 sq.mm to 4 sq.mm)
     Flat & twisted - 2C (0.5 sq.mm to 4 sq.mm)

 Instrumentation Cable: 0.5 sq.mm – 2.5 sq.mm, Core – 2-37, Pair – 2-37

 Other Type of Cable:
    1. Communication & Data Cable
    2. Renewable Energy Cable
    3. Rubber Cable
    4. Marine Offshore/onshore Cable
    5. High Temperature Cable
    6. Domestic/Building Commercial Cable
    7. Special / Defence Cable

Earthing Materials

  Copper Strips, Copper Bus, Copper Plates

  GI Strips, GI Bus, GI Plates

  Chemical Earthing (GI/Copper)

  Marconite/ Bentonite Earthing

  Copper Conduit Earthing Clamps

  Copper/GI Pipe Perforated Earthing

  Trafoil Clamps

  Backfill Compound

  Earth pit Chamber Cover (CI/MI)

Lightning Arrester

  Station Class Heavy Duty Gapless

  Distribution Class

  Rated Voltage – 12KV / 42KV

  KV_rms–10KV/36KV

  Nominal System Voltage – 11KV / 33KV

  NEE / EE – System Neutral Earthing

  Max. System BIL –75KV / 170KV

  System Fault Level – 16KA/25KA

  Nominal Discharge Current – 5KA/10KA

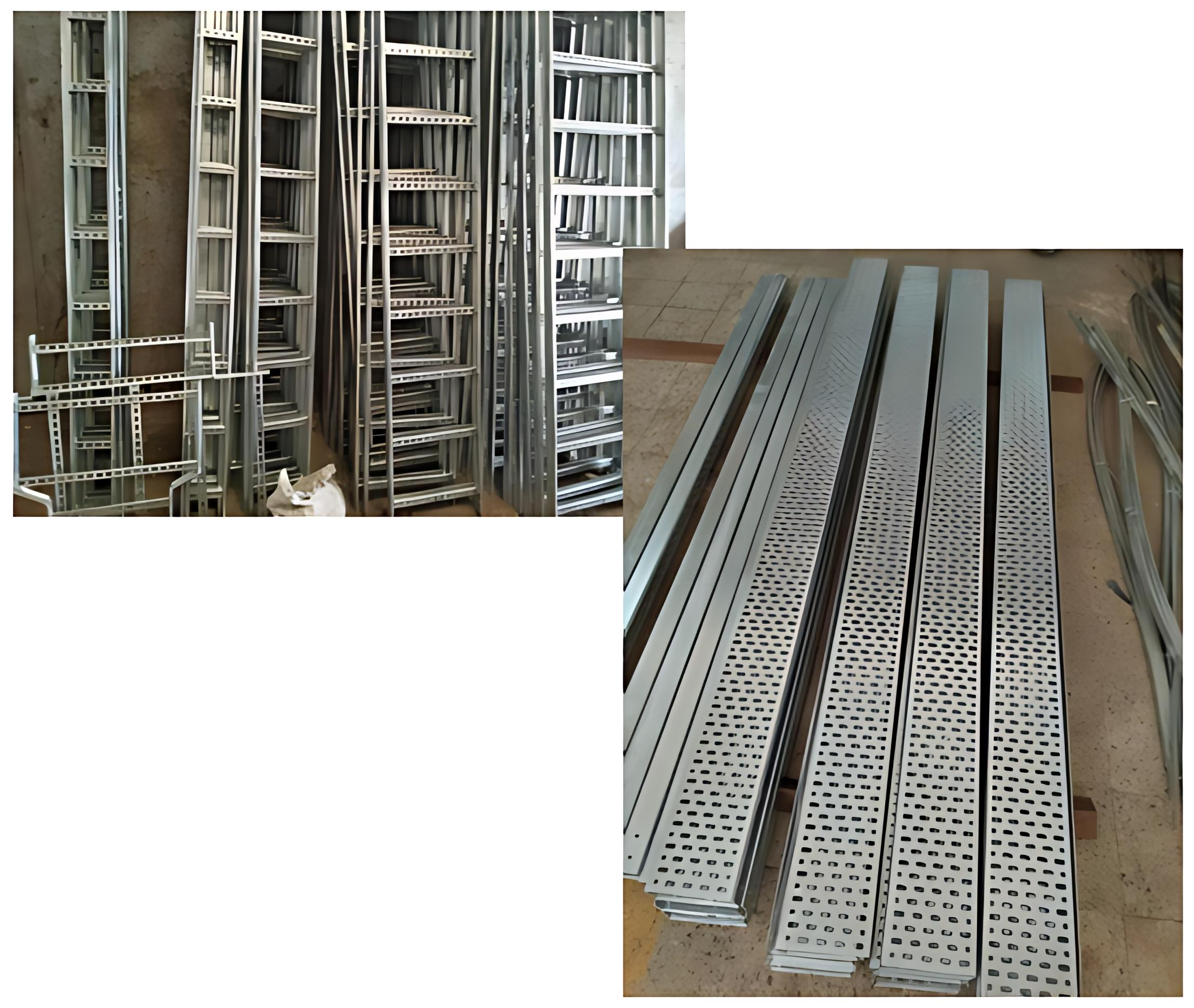

Cable Tray

  GI / MS

  Thickness – 1.2mm / 1.6mm / 2.0mm

  Width –50-1000 mm

  Ladder Type, Solid Bottom, Wire Mesh, and Perforated Type

  Depth –25-100mm

  Standard Length –2.5 MTR

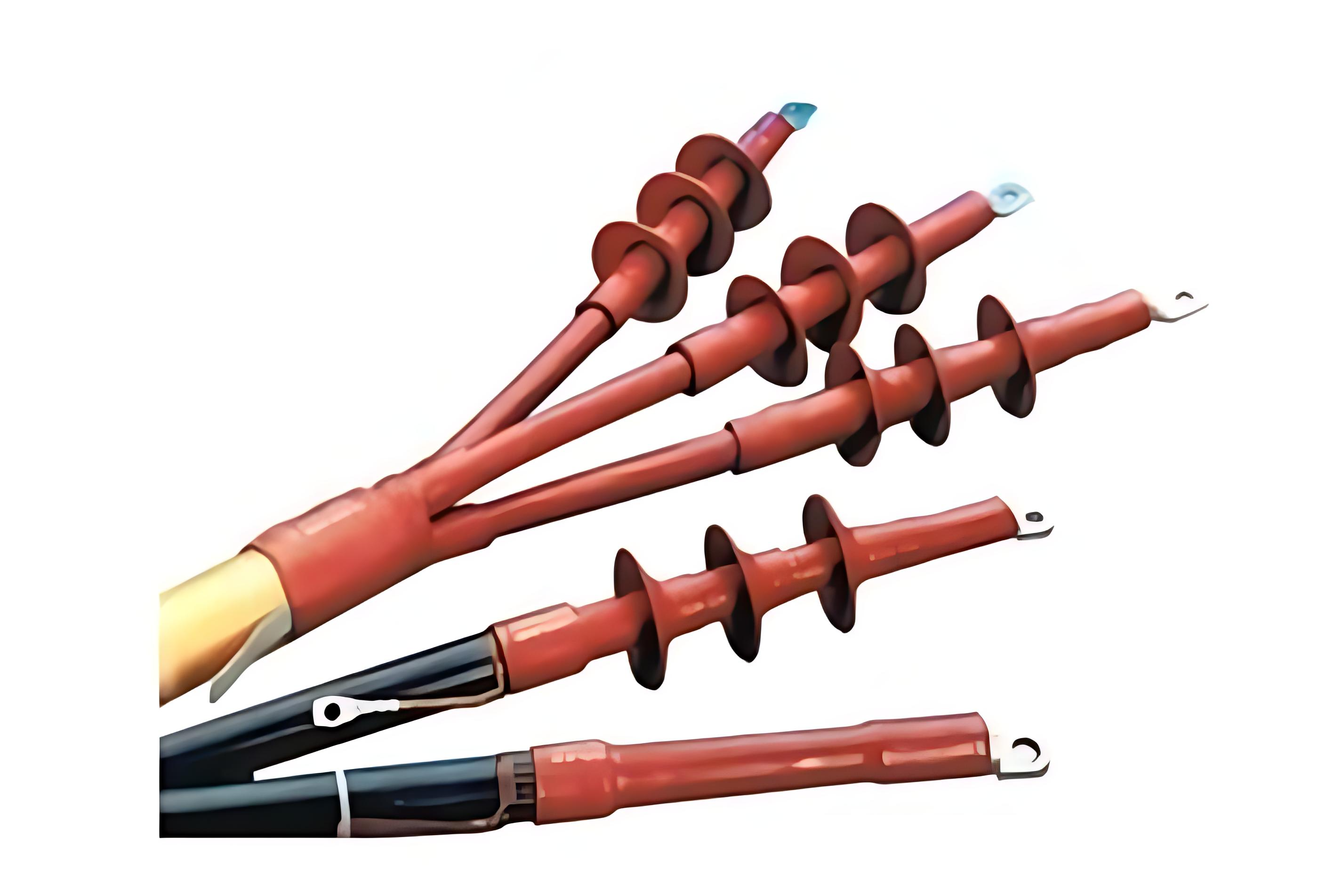

HT Termination Kit

 Up to 72KV

 XLPE Cable 3, 3.5 & 4 Core

 Heat Shrinkable Type

 Indoor or Outdoor Type

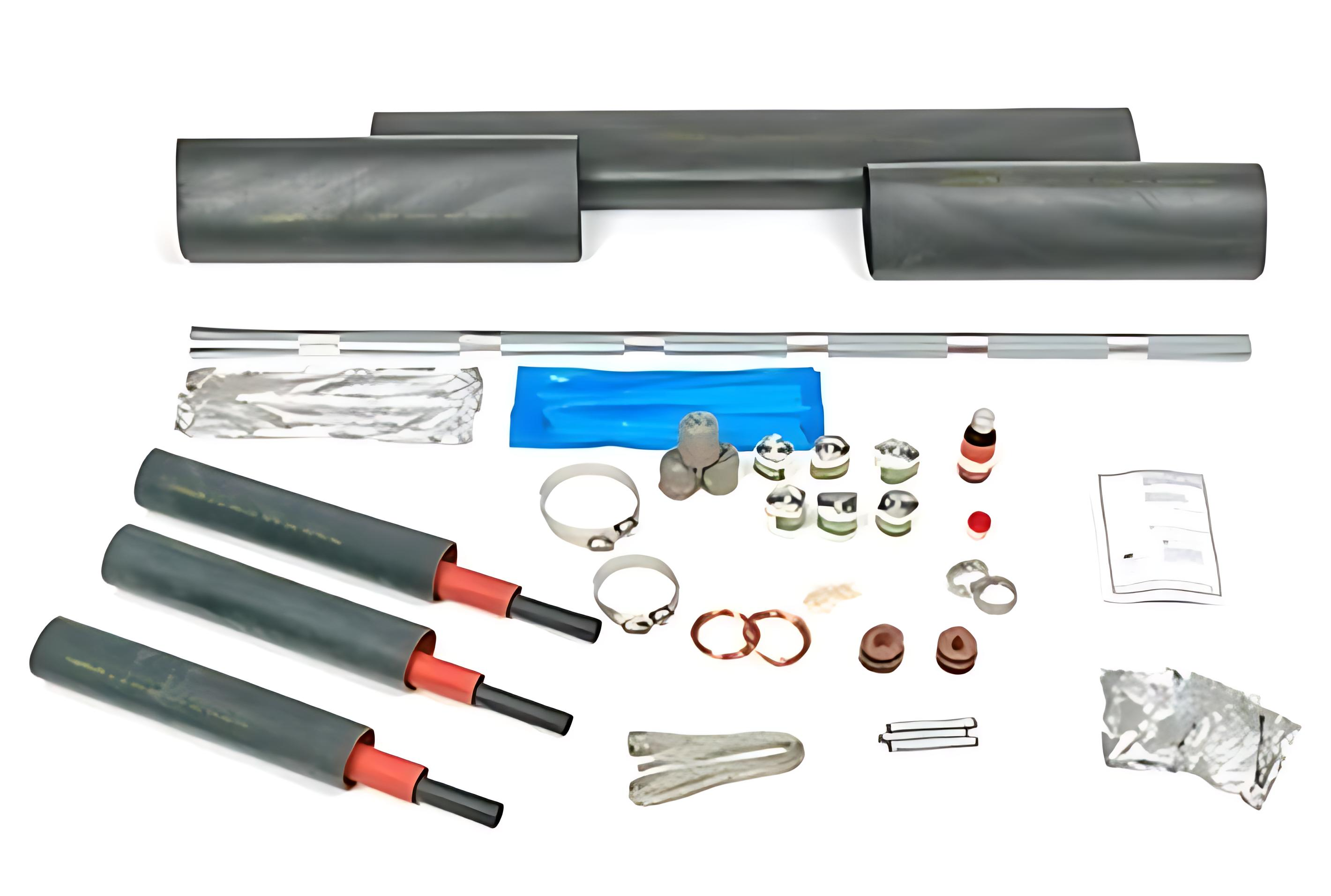

Cable Jointing Kit

 Up to 36KV

 XLPE Cable 3, 3.5 & 4 Core

 Heat Shrinkable Type

 Indoor or Outdoor Type

 Straight through/ T Shape/ Y Shape
